LORO-X balcony drainage series IK with dome and clamping collar

Series IK includes direct drains "with dome" and clamping collar for installation in core drillings and is particularly suitable for renovation projects.

Dome and clamping collar

The bell-like design of the underside of Series I and IK for setting in concrete is called the bell. The dome consists of an inner tube (carrying the media) and an outer tube that forms an annular gap. An annular gap is created between the two, into which the socket of the downpipe can be pushed from below. A separate bell jar can therefore be dispensed with.

Areas of application

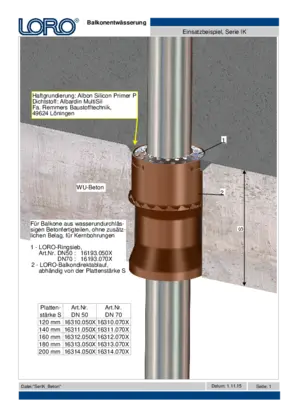

Balconies made of precast concrete parts made of waterproof concrete, without additional covering.

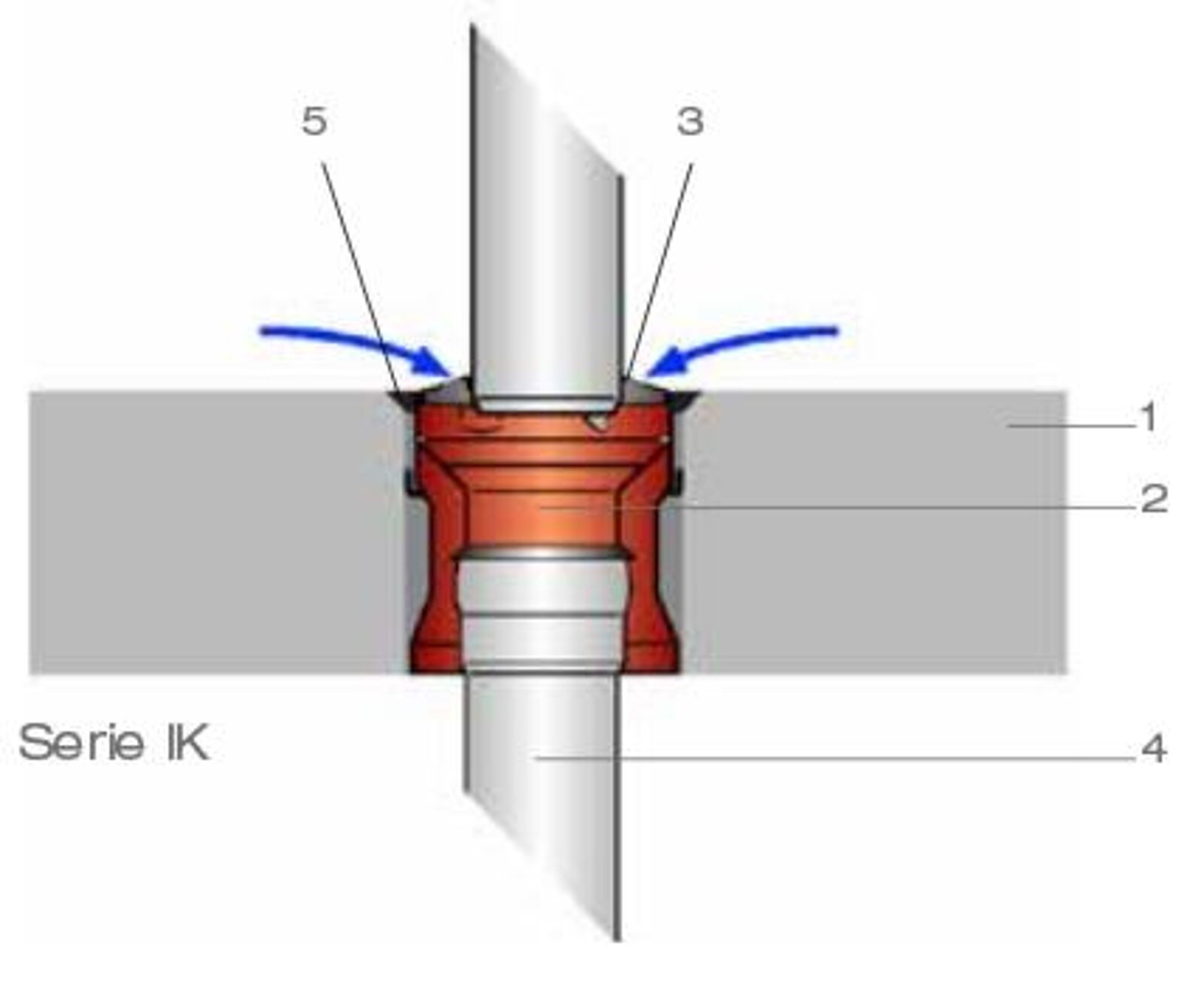

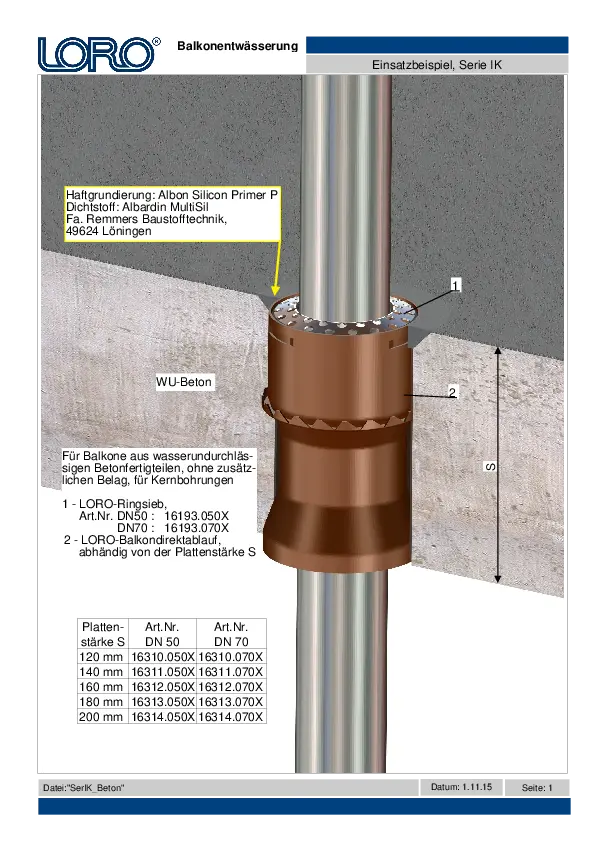

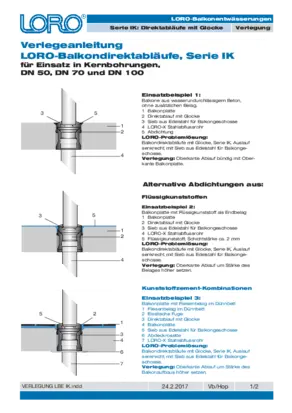

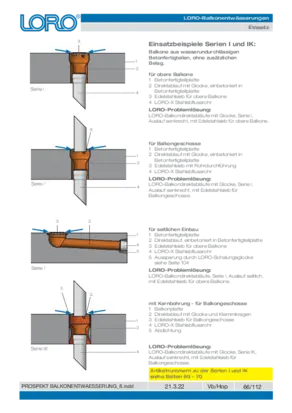

Application examples series IK

You will find further application examples with a detailed description in our LORO-X balcony drainage brochure LORO-X balcony drainage systems.

[Translate to EN:] Für Balkone aus wasserundurchlässigen Betonfertigteilen, ohne zusätzlichen Belag, für Kernbohrungen — water-impermeable precast concrete parts, without additional covering, for core drilling

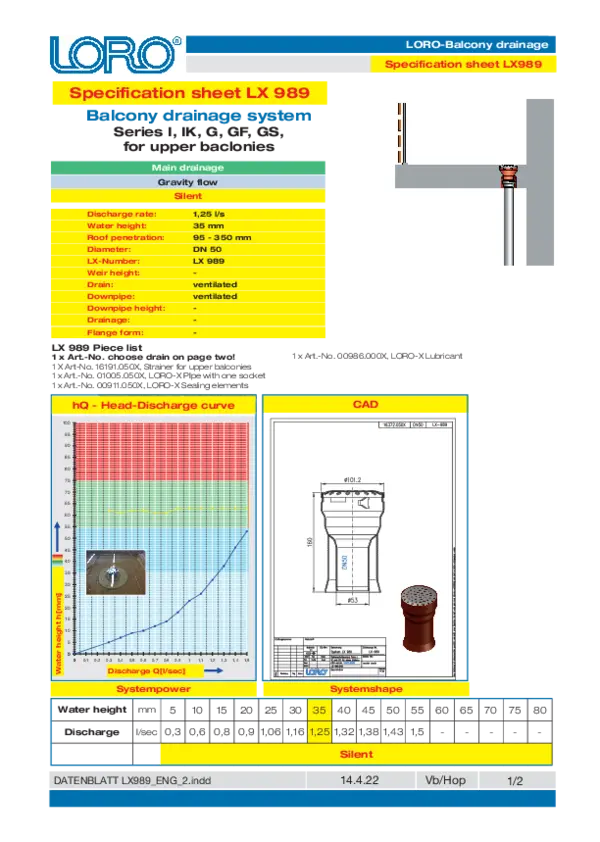

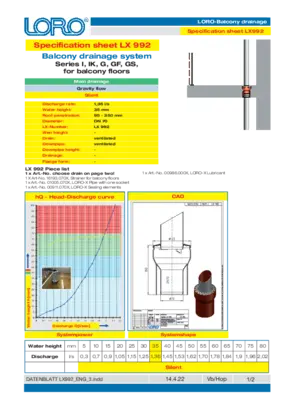

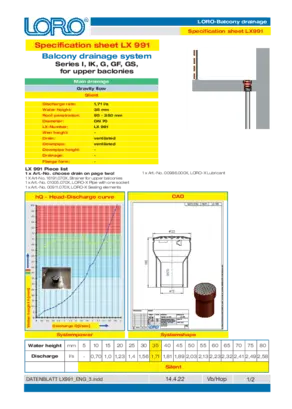

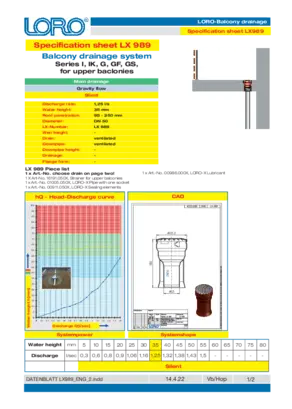

LORO-X Balcony direct drains with dome and clamping collar, Series IK
Plate thickness	DN 50	DN 70
120 mm	16310.050X	16310.070X
140 mm	16311.050X	16311.070X
160 mm	16312.050X	16312.070X
180 mm	16313.050X	16313.070X
200 mm	16314.050X	16314.070X

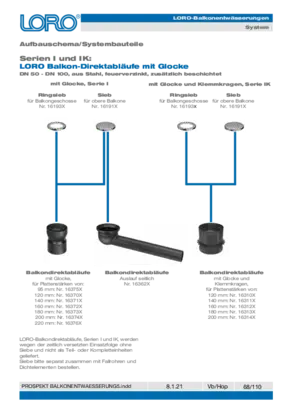

Siebe

Strainer, made of stainless steel
	DN 50	DN 70
with pipe opening	16193.050X	16193.070X
for upper balconies	16191.050X	16191.070X

LORO-X holding fixture for strainer with strainer holes
	DN 50	DN 70
	16195.050X	16195.070X

LORO-X Strainer support, for balcony drains series I, IK, G, GF and GS The LORO-X sieve holder for balcony drains of the series I, IK, G, GF and GS iis a high-quality alternative to the standard plastic sieve holders. End sieves for individual drains as well as ring sieves for direct drains can be used in the sieve holder. The surrounding collar as a decorative sheet enhances the balcony drainage on the second, visible, drainage level .
	DN 70	DN 100
made of stainless steel	16190.070X	16190.100X

LORO-Balcony drain collar
	DN 050	DN 070
with feed-through opening suitable for pipe, material, stainless steel 1.4301, 1 mm thick	16800.050X	16800.070X
with feed-through opening suitable for socket 2nd stage, material, stainless steel 1.4301, 1 mm thick outer pipe 250 mm long	16801.050X	16801.070X
