LORO-X Series 43 model without roof penetration
![](/fileadmin/_processed_/1/9/csm_01316.070X_cf904dcd8f.jpg)
The model without roof penetration with clamping flange is characterized by particularly space-saving dimensions.
There is no further basin below the bonding flange with a 45-degree upstand for bituminous roofing sheets, so that no recess has to be cut into the thermal insulation.
Due to its special "square onto round" construction, the horizontal drainage pipe with the wider base performs better than normal round pipes even at low water heights.
The emergency drains of the model without roof penetration offer a large circumference above the congestion element for the water to overflow, which is then accelerated into the drain pipe via a special slope.
The model without roof penetration is therefore optimally suited for smaller roof areas, especially in private residential construction, in commercial construction for office buildings and for accessible flat roofs such as larger terraces.

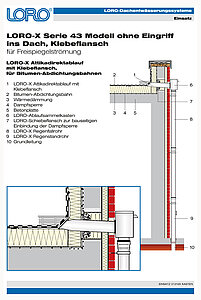

Application example Series 43 with bonding flange and 45°
Main drainage
LORO-X
Parapet-direct drain - for small roof areas - made of galvanized steel, DN 70 and DN 100 | ![]() | ||
DN 70 | DN 100 | ||
for bituminous roofing sheets | 01316.070X | 01316.100X |
Emergency drainage
LORO-X Parapet-direct drain - emergency drains, made of galvanized steel, DN 70 and DN 100 | ![]() | ||
DN 70 | DN 100 | ||
weir height 40 mm for bituminous roofing sheets | 01325.070X | 01325.100X |
LORO-X Parapet-direct drain - emergency drains, made of galvanized steel, DN 70 and DN 100 | ![]() | ||
DN 70 | DN 100 | ||
weir height 60 mm for bituminous roofing sheets | 01326.070X | 01326.100X |
Accessories
LORO-X Drain collector box for LORO-RAINSTAR and LORO-X parapet-direct drains | ![]() | ||
DN 70 | DN 100 | ||
with round opening DN 70 and DN 100, made of galvanized steel | 04379.070X | 04379.100X |
LORO-X sliding flanges for LORO-RAINSTAR and LORO-X parapet-direct drains | ![]() | ||
DN 70 | DN 100 | ||
for bituminous roofing sheets | 13235.070X | 13235.100X | |
for plastic roofing sheets | 13236.070X | 13236.100X |
