LORO-X balcony drainage series H with connection sleeve

The H series includes balcony drains with connecting sleeves for connection to sealing membranes.

The connection sleeve consists of bitumen / EPDM composite (standard) or, on request, of PVC or ECB and is pre-assembled at the factory.

As a standard, the H series is made of hot-dip galvanized steel with an additional coating. Manufacture from solid copper is also possible on request.

Areas of application

Balconies and terraces with waterproofing membranes, tiles or paving slabs.

Application examples Series H

You will find further application examples with a detailed description in our brochure LORO-X balcony drainage systems.

[Translate to EN:] Direktabläufe Serie H einteilig für Balkone mit Abdichtungsbahnen und Plattenbelag — One-piece with roofing sheets and paving slab

[Translate to EN:] Direktabläufe Serie H zweiteilig für Balkone mit Abdichtungsbahnen und Plattenbelag — Two-part with roofing sheets and paving slab

[Translate to EN:] Direktabläufe Serie H zweiteilig für Balkone mit Abdichtungsbahnen und Plattenbelag, Brandschutz R90 — Fire protection R90

[Translate to EN:] Direktabläufe Serie H seitlich für Balkone mit Abdichtungsbahnen und Plattenbelag — Direct drains with roofing sheets and paving slab

[Translate to EN:] Einzelabläufe Serie H seitlich für Balkone mit Abdichtungsbahnen und Plattenbelag — One-piece roofing sheets and paving slab

[Translate to EN:] LORO-X Balkonentwässerung Serie H mit Anschlussmanschette Einbau Detailskizze — Installation detail sketch

[Translate to EN:] LORO-X Balkonentwässerung Serie H mit Anschlussmanschette mit rundem Sieb — with round strainer

[Translate to EN:] LORO-X Balkonentwässerung Serie H mit Anschlussmanschette mit Holzbelag — with wooden covering

[Translate to EN:] LORO-X Balkonentwässerung Serie H mit Anschlussmanschette Reinigung — Cleaning

Series H

LORO-Balcony direct drains with connecting sleeve - Series H single part
	DN 70	DN 100
a) without thermal insulation	16277.070X	16277.100X
b) with thermal insulation	16390.070X	16390.100X

LORO-Balcony direct drains with connecting sleeve - Serie H single part
	DN 70	DN 100
a) without thermal insulation	16278.070X	16278.100X
b) with thermal insulation	16391.070X	16391.100X

LORO-Balcony direct drains with connecting sleeve - Series H two part
	DN 70	DN 100

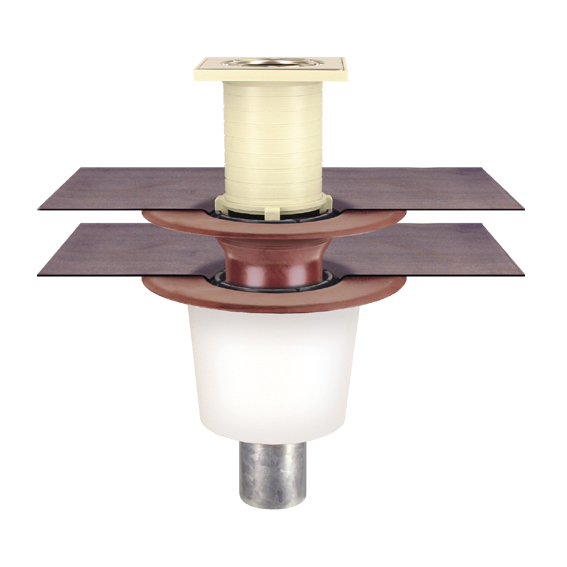

a) without thermal insulation	16287.070X	16287.100X
b) with thermal insulation	16397.070X	16397.100X

LORO-Balcony direct drains with connecting sleeve - Series H two part
	DN 70	DN 100
a) without thermal insulation	16288.070X	16288.100X
b) with thermal insulation	16398.070X	16398.100X

Balcony drain Base unit without Strainer unit

LORO-X Balcony direct drain Base unit, Series H consisting of: drain body, connectiom sleeve and clamping ring
		DN 70	DN 100
Vertical runoff	without thermal insulation	16225.070X	16225.100X
Vertical runoff	with thermal insulation	16226.070X	16226.100X
Horizontal runoff 3°	without thermal insulation	16220.070X
Horizontal runoff 3°	with thermal insulation	16320.070X

LORO-X Balcony fire protection drains AbP.-No. P-MPA-E-09-010

Complete units - Series H with thermal insulation and fire protection sleeve

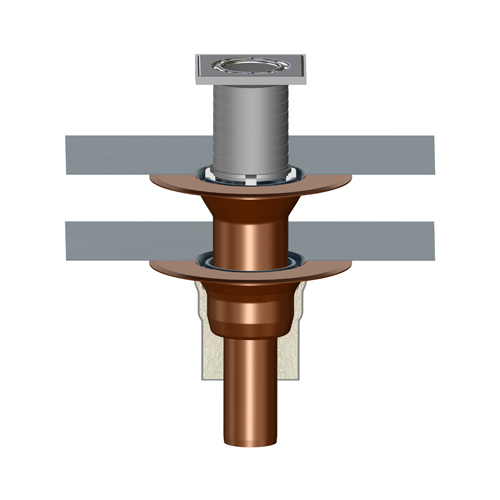

For balcony floors, two-piece		DN 70	DN 100
Vertical runoff	fire protection sleeve	16399.070X	16399.100X

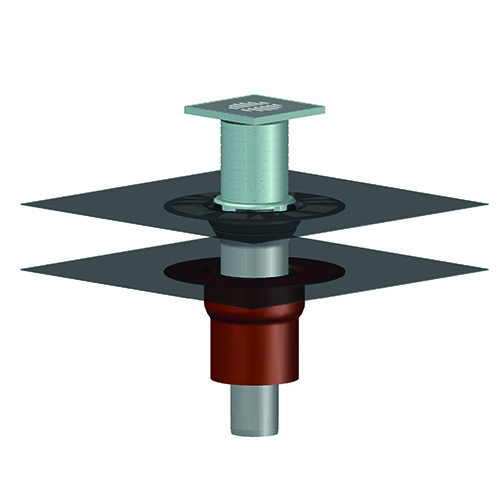

For upper balconies, two-piece		DN 70	DN 100
Vertical runoff	fire protection sleeve	16598.070X	16598.100X
LORO-balcony drain base unit, Series H DN 70, DN 100, with thermal insualtion and fire protection sleeve, clamping ring and conection sleeve
one-piece		DN 70	DN 100
Vertical runoff	with fire protection sleeve	16283.070X	16283.100X

LORO-balcony direct drain Extension unit, Series H consisting of: drain body, connecting sleeve and clamping ring
	DN 70	DN 100
for installation heights of 60-120 mm	16204.070X	16204.100X

Strainer units

LORO-balcony direct drain Strainer units, series H consisting of: strainer, strainer support and drainage ring
	DN 70	DN 100
with strainer for balcony floors	16303.070X	16303.100X
with strainer for upper balconies	16304.070X	16304.100X

Additional components

LORO-X Extension pipes
	DN 70	DN 100
110 mm length and short socket	16587.070X	16587.100X

LORO-X Strainer pipes, made of stainless steel
	DN 70	DN 100
110 mm length and short socket	16597.070X	16597.100X

Accessories

LORO-Balcony drain collar made of stainless steel, matertial-no 1.4301, material thickness 1 mm
	DN 050	DN 070
compatible to pipes	16800.050X	16800.070X
compatible to sockets	16801.050X	16801.070X

3D Installation video Series H
