LORO-X Parapet drainage
for the outside flat roof drainage
Description
Parapet means "roof edge upstand as a wall-like structure on the roof edge of a building together with the roof edge closure instead of a gutter".

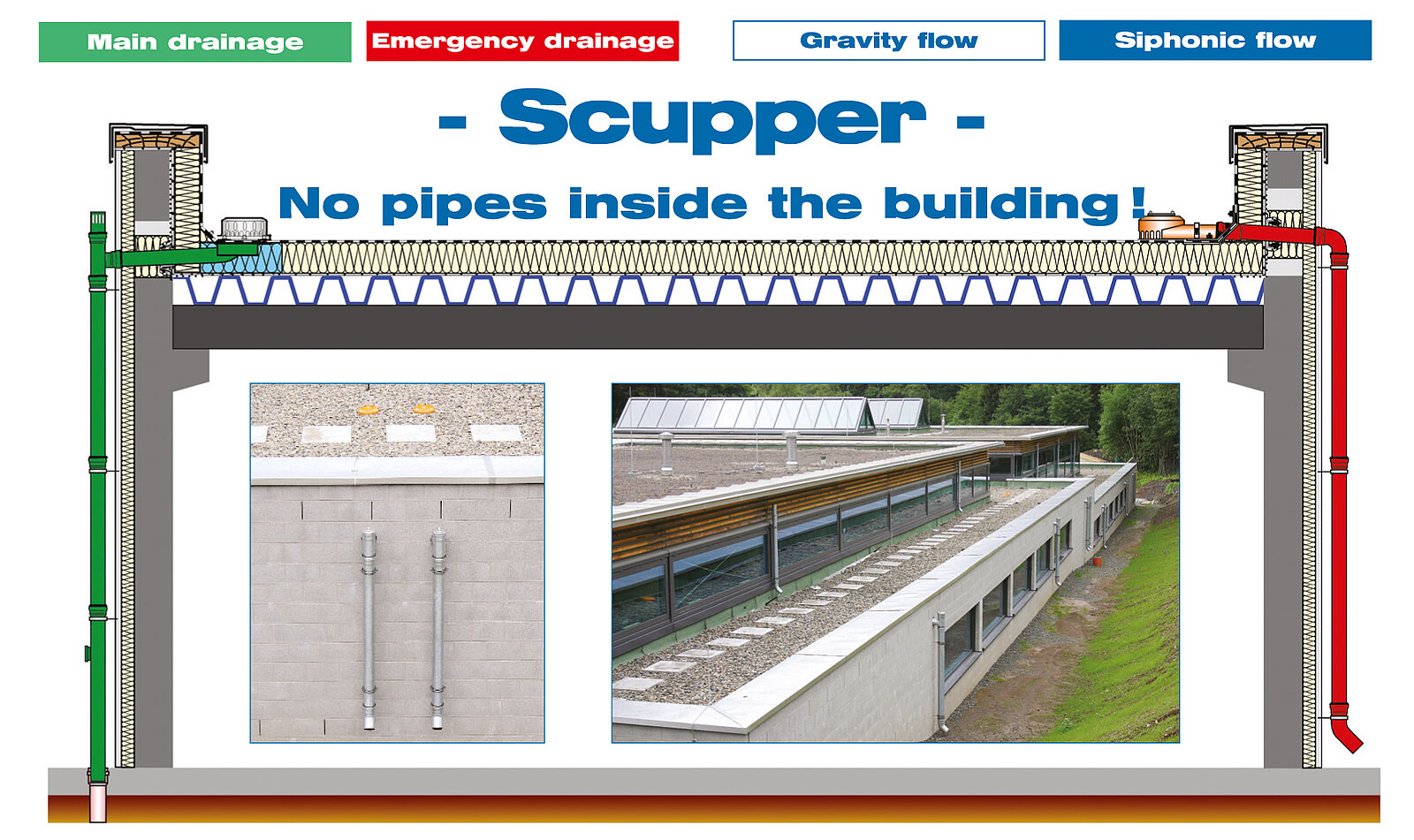

Parapet drainage is - similar to the gutter drainage - a complete outside drainage for flat roofs. The drainage system is installed near the parapet upstand together with a parapet drain. From there the continuing pipe system is led horizontally through the parapet from the roof.
LORO-X parapet drainage systems in a complete system with downpipe for the main and emergency drainage offer planners and installers a reliable proof of performance in the form of a defined system shape (modular standard systems) and the resulting system performance in the form of a discharge curve. This applies to parapet drainage systems with siphonic flow as well as to systems with gravity flow.
LORO-X parapet drainage systems with siphonic flow constitute an innovative alternative to inside roof drainage systems if the building design does not provide for inside piping systems for the roof drainage. With the pressure-resistant LORO-X steel discharge pipe, all buildings can be drained with siphonic flow via the parapet just as safely as it is known from gravity drainage.
![](/fileadmin/_processed_/6/0/csm_ATTDIREKTengl1_e7d5d5ffdb.jpg)
Series 43 Parapet-Direct
for the installation "directly" in the roof edge upstand
- space-saving installation directly in the parapet upstand
- optimal for used roof areas and roof terraces
- silent gravity flow for residential and commercial buildings
- as main and emergency drainage
- discharge rate compliant to the roof drainage standard
- up to 4.5 l/s at a water height of 35 mm
![](/fileadmin/_processed_/6/c/csm_ATTRAINSTengl_101550f387.jpg)
Series 79/89 RAINSTAR
with upstand as installation aid in the parapet
- upstand as installation aid in the parapet
- only one horizontal sealing level
- high discharge up to 21.7 l/s
Series 79 with lowered pipe:
High discharge rate also with gravity flow due to the patented, lowered pipe.
Series 89 with small penetration depth:
Small penetration depth of only 55 mm.
![](/fileadmin/_processed_/6/c/csm_ATTRAINSTengl_101550f387.jpg)
Series 88 Parapet-Distant
with variable distance to the parapet
- Distant with variable distance to the parapet
- without upstand
- only one horizontal sealing level
- high discharge rate due to patented, lowered pipe
- high discharge up to 21.7 l/s
![](/fileadmin/_processed_/8/a/csm_ATTSTARengl_4fda5328af.jpg)

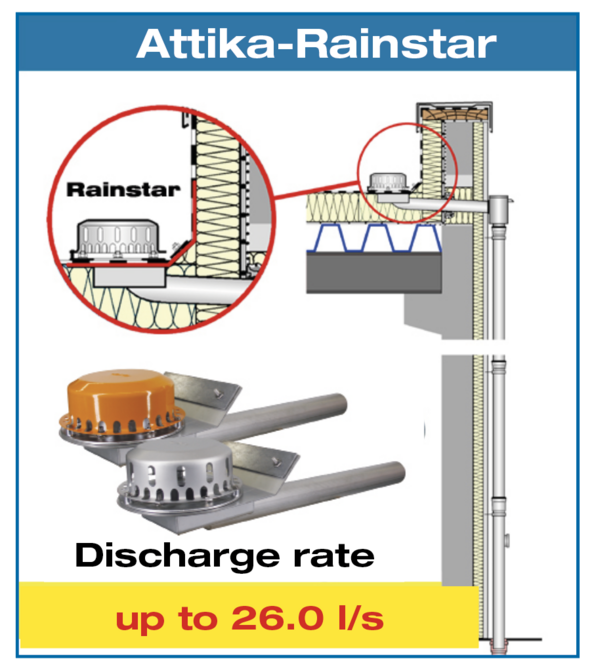

Series 93 ATTIKASTAR
with high performance for large roof areas
- high performance up to 32 l/s at 55 mm/75 mm
- particularly smooth operation due to large cover
- small penetration into the thermal insulation (double pipe)
- fast „starting“ of the siphonic flow
- secure sealing with round pipes
![](/fileadmin/_processed_/5/b/csm_ATTDJengl_a59bad4102.jpg)
Series 62 without roof penetration
without draining basin for maximum thermal insulation
- no penetration into the thermal insulation or the concrete ceiling of the roof
- up to 16 l/s at 55 mm as main drainage with siphonic flow
- up to 14.5 l/s at 75 mm as emergency drainage with siphonic flow
- standard-compliant connection to the roof membrane and vapor barrier
- no penetration of the roof membrane
- small pipe cross-section for the installation on and behind the facade
![](/fileadmin/_processed_/f/6/csm_ATT_HNKengl1_3bae1986ef.jpg)
Series 88 Main and emergency combination
Main drainage and emergency drainage in one system
- 2 in 1: integrated emergency drainage system
- only 1 visible downpipe due to patented pipe-in-pipe principle
- only 1 opening through the parapet
- only 1 sealing of the drain
- Silent gravity flow up to 4.5 l/s during normal operation (DN 100)
- Silent-Power siphonic flow with additional 8.2 l/s during emergency operation (DN 50)
