LORO-X Series O Flat roof drainage with connecting sleeve
![](/fileadmin/_processed_/7/1/csm_Einsatzbeispiel_Serie_O_Trapez_87a08b834a.jpg)
![](/fileadmin/_processed_/e/b/csm_Einsatzbeispiel_Serie_O_2tlg_c7b54c6e34.jpg)
![](/fileadmin/JPG/Uebersicht%20Serie%20O%20DN70.jpg)
![](/fileadmin/JPG/Uebersicht%20Serie%20O%20DN100.jpg)
The base body and extension cartridges of the metallic flat roof drains of Series O with connecting sleeve are made of hot-dip galvanized steel (DN 70) or 2 mm thick aluminum (DN 100 + DN 125) with an additional plastic coating.
The hood of Series O is made of durable and extremely weather-resistant stainless steel and resists frost, heat, UV-rays and other exposures.
For inspection and maintenance, the hood can be removed and put back into the base body after the measure.
High quality connecting sleeves
As standard, a high-quality connecting sleeve made of bitumen / EPDM composite with a clamping ring is pressed in at the factory, which can be used universally for a variety of sheets made of bitumen and EPDM.
On request (please specify when ordering!) various other sheets made of PVC, FPO, EVA, PVC-BV, PIB or pure EPDM can be selected.
When using connecting sleeves, in contrast to loose and fixed flange constructions, no component is arranged above the sealing sheet so that there is no residual water formation.
Series O DN 70, one-piece
LORO-X Flat roof drains with connecting sleeve, Series O, DN 70, one-piece | |||
DN 70 | |||
vertical socket | a) without thermal insulation | 15275.070X | ![]() |
b) with thermal insulation | 15375.070X | ![]() | |
horizontal socket | a) without thermal insulation | 15475.070X | ![]() |
b) with thermal insulation | 15575.070X | ![]() |
Series O DN 70, two-piece
LORO-X Flat roof drains with connecting sleeve, Series O, DN 70, two-piece | |||
DN 70 | |||
vertical socket | a) without thermal insulation | 15285.070X | ![]() |
b) with thermal insulation | 15385.070X | ![]() | |
horizontal socket | a) without thermal insulation | 15485.070X | ![]() |
b) with thermal insulation | 15585.070X | ![]() |
Sub-units for modular-based completion purposes
Base units - Series O | |||
DN 70 | |||
Vertical runoff | a) without thermal insulation | 15200.070X | ![]() |
b) with thermal insulation | 15300.070X | ![]() | |
Horizontal
runoff | a) without thermal insulation | 15400.070X | ![]() |
b) with thermal insulation | 15500.070X | ![]() |
Extension unit | ||
DN 70 | ||
Raise up from 40 to 180 mm | 15205.000X | ![]() |
Strainer unit, H = 70 | ||
DN 70 | ||
consisting of: strainer basket, loose flange and sealing element | 15590.070X | ![]() |
LORO-X Strainer basket | ||
DN 70 | ||
made of stainless steel | 15217.000X | ![]() |
Series O DN 100-125, one-piece
LORO-X Flat roof drains with connecting sleeve, made of aluminium, Series O, one-piece | ||||
DN 100 | DN 125 | |||

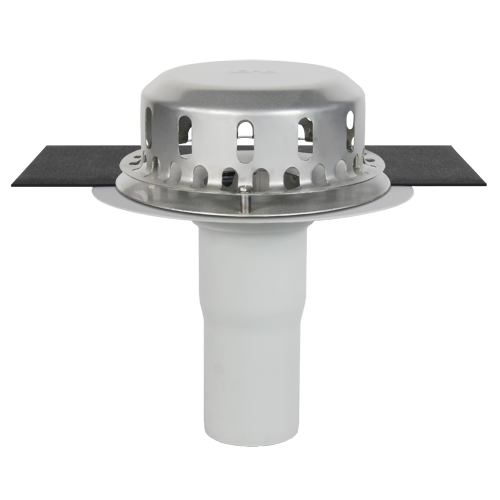

vertical socket | a) without thermal insulation | 17110.100A | 17110.125A | ![]() |
b) with thermal insulation | 17141.100A | 17141.125A | ![]() | |
c) with thermal insulation and heating | 17143.100A | 17143.125A | ![]() | |
horizontal socket | a) without thermal insulation | 17131.100A | ![]() | |
b) with thermal insulation | 17145.100A | ![]() | ||
c) with thermal insulation and heating | 17147.100A | ![]() |
LORO-X Flat roof drains with connecting sleeve, made of aluminium, Series O, two-piece | ||||
DN 100 | DN 125 | |||
vertical socket | a) without thermal insulation | 17120.100A | 17120.125A | ![]() |
b) with thermal insulation | 17142.100A | 17142.125A | ![]() | |
c) with thermal insulation and heating | 17144.100A | 17144.125A | ![]() | |
horizontal socket | a) without thermal insulation | 17132.100A | ![]() | |
b) with thermal insulation | 17146.100A | ![]() | ||
c) with thermal insulation and heating | 17148.100A | ![]() |
Sub-units
Complete units - Series O | ||||
DN 100 | DN 125 | |||
Vertical runoff | without thermal insulation | 17300.100A | 17300.125A | ![]() |
with thermal insulation | 17400.100A | 17400.125A | ![]() | |
with thermal insulation and heating | 17500.100A | ![]() | ||
Horizontal runoff, 3 ° | a) without thermal insulation | 17301.100A | ![]() | |
b) with thermal insulation | 17401.100A | ![]() | ||
c) without thermal insulation and heating | 17501.100A | ![]() |
Extension unit | ||||
consisting of: extension cartridge, connecting sleeve and clamping ring | DN 100 | DN 125 | ||
Raise up from 40 to 180 mm | 17204.100A | 17204.125A | ![]() |
Strainer unit H = 105 mm | ||||
consisting of: strainer basket and loose flange | DN 100 | DN 125 | ||
17121.100X | 17121.125X | ![]() |
Additional components
Strainer unit with weir element DN 100: 17137.100A
Strainer unit with weir element DN 125: 17137.125A
Strainer unit, accessible DN 100: 18620.100X
Strainer unit, accessible DN 125: 18620.125A
Advantages
- made of metal, durable and weather-resistant
- with factory-clamped connecting sleeve
- with vertical or horizontal runoff
- 1-piece or 2-piece for warm roofs
- also with insulating body and trace heating
- no loose flange above the sealing sheet, thus no residual water
