LORO-X balcony drainage series J Direct drains with supporting edge

LORO-VERSAL Series J includes direct drains made of hot-dip galvanized steel with a supporting edge for liquid plastic seals. Also suitable for simple renovation.

With thread

Quick installation with a thread: The direct drain with an external thread is led from the top of the balcony slab through the core drill hole and simply screwed tightly to the internal thread of the lower downpipe with a union nut.

Advantages: No fixing and aligning necessary. There is no need to fill the core hole. The core drilling is covered by the union nut. Cover rosettes are not required. Dimensionally stable LORO-X downpipe.

In the J series, complete units with a thread are divided into:

- for upper balconies (floor-to-ceiling tube)

- for middle balconies or balcony floors (floor-to-ceiling tube)

- for lower balconies (short pipe)

Without thread

Series J is alternatively also available without a thread with a supporting edge, which basically does not have a floor-to-ceiling tube.

Application examples Series J

You will find further application examples with a detailed description in our brochure LORO-X balcony drainage systems.

[Translate to EN:] LORO-X Balkonentwässerung Serie J Direktabläufe mit Stützrand Einbausituation mit Gewinde — with thread

[Translate to EN:] LORO-X Balkonentwässerung Serie J Direktabläufe mit Stützrand Einbausituation ohne Gewinde — without thread

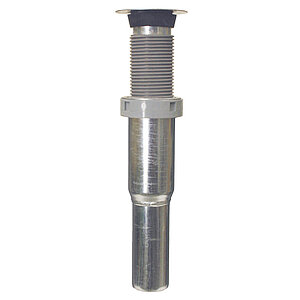

LORO-X VERSAL^® Balcony direct drains with supporting edge, Series J, for upper balconies
	DN 70	DN 100
Ceiling thickness 40 - 170 mm	16738.070X	16738.100X
Ceiling thickness 150 - 250 mm	16739.070X	16739.100X

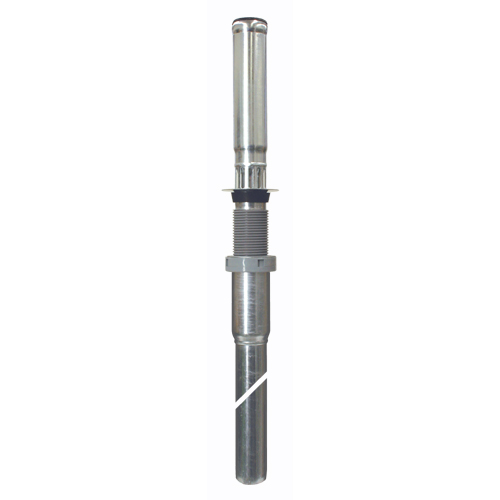

LORO-X VERSAL^® Balcony direct drains with supporting edge, Series J, for balcony floors
	DN 70	DN 100
Ceiling thickness 40 - 170 mm	16728.070X	16728.100X
Ceiling thickness 150 - 250 mm	16729.070X	16729.100X

LORO-X VERSAL^® Balcony direct drains with supporting edge, Series J, for lower balconies
	DN 70	DN 100
Ceiling thickness 40 - 170 mm	16748.070X	16748.100X
Ceiling thickness 150 - 250 mm	16749.070X	16749.100X

LORO-X VERSAL^® Balcony direct drains with supporting edge, Series J -without thread and long socket-
	DN 50	DN 70
for upper balconies	16733.050X	16733.070X
for balcony floors	16716.050X	16716.070X
