Artikel: 13766.CC0X - LORO-X ATTIKASTAR HEAVY-DUTY SIPHONIC SCUPPER EMERGENCY-DRAIN WITH DOUBLE PIPE, SERIES 93, CLAMPING FLANGE, DN 70/70

LORO-ATTIKASTAR emergency drain with weir 60 mm for pressure pipe DN 70

LORO-X ATTIKASTAR siphonic parapet drain with double pipe, series 93 high performance, for emergency drainage with siphonic flow, discharge rate 32.0 l/s at 75 mm water level on the roof, with clamping flange, as loose and fixed flange construction, without flange upstand for bituminous and plastic roofing sheets, penetration depth 55 mm, according to DIN EN 1253, proof of performance with standard-compliant testing system with 4.2 m non-ventilated downpipe according to system data sheet LX766, made of steel, hot-dip galvanized, DN70/70

LORO-Export price without tax: 1625,70 €
EAN-Code: 4038088083512
ETIM Class: 0
Nominal diameter: DN 70, DN 70
Outside measurements (HxWxL): 533 x 807 x mm
Weight: 15,40 Kg (STK)
Product group (WG): 9
Customs tariff number: 73089098
Produktfinder/Serie: Link
Material and Color: Stahlfeuerverzinkt, Silber

Feedback for this article?

Artikel: B0766.004X -

LORO-X BOX Attika emergency drainage for pressurised water with double pipe DN 70/70

LORO-X BOX B0766.004X parapet siphonic drainage system DN70/70/100, consisting of Attikastar emergency drain with clamping flange, horizontal offset with 2x DN70 double pipe, deflection with special Y-shaped joint, anchor clips, sliding flange for the connection of the vapour barrier, sealing elements and lubricant for the complete assembly of the drain up to the downpipe. This parapet siphonic drainage system must be supplemented by the pressure-resistant LORO-X downpipe 1xDN100 with a length of at least 4.2 m in order to achieve the specified performance. Please ask your dealer or your LORO contact person. Performance according to specification sheet LX766 at www.loro.de up to 32.0l/s at 75mm water level

LORO-Export price without tax: 2315,00 €
EAN-Code: 4038088089309
ETIM Class: 0
Nominal diameter: DN 70, DN 70
Outside measurements (HxWxL): 106 x 270 x mm
Weight: 28,20 Kg (STK)
Product group (WG): 9
Customs tariff number: 73089098
Produktfinder/Serie: Link

Feedback for this article?

Complete System LX766-4X

with clamping flange without lip

LORO-X ATTIKASTAR siphonic parapet drainage system with double pipe, series 93 high performance, for emergency drainage with siphonic flow, discharge rate 32.0 l/s at 75 mm water level on the roof, with clamping flange, as loose and fixed flange construction, without flange upstand for bituminous and plastic roofing sheets, penetration depth 55 mm, according to DIN EN 1253, proof of performance with standard-compliant testing system with 4.2 m non-ventilated downpipe according to system data sheet LX766,drain made of steel, hot-dip galvanized, DN 70/70

Piece list according to Datasheet LX766-4X:

1 x 13766.CC0X - LORO-X ATTIKASTAR HEAVY-DUTY SIPHONIC SCUPPER EMERGENCY-DRAIN WITH DOUBLE PIPE, SERIES 93, CLAMPING FLANGE, DN 70/70
2 x 01301.070X - LORO-X PIPE WITH 1 SOCKET 500 MM DN 70

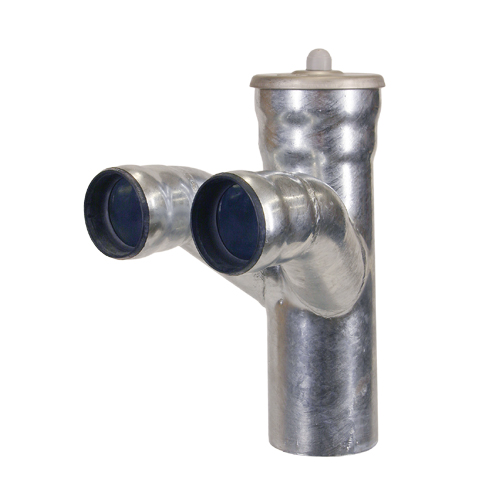

1 x 13517.DCCX - LORO-X Y-TEE WITH CLOSING PLUG, FOR ATTIKASTAR SERIES 93, DN 100/70/70
1 x 01011.100X - LORO-X PIPE WITH 1 SOCKET 4000 MM DN 100
1 x 00320.100X - LORO-X BEND 45 DEGREE DN 100
4 x 00911.070X - LORO-X SEALING ELEMENT SBR DN 70
2 x 00911.100X - LORO-X SEALING ELEMENT SBR DN 100
2 x 00975.100X - LORO-X PIPE CLIP WITH CONNECTING THREAD M 10, DN 100
1 x 00986.000X - LORO-X LUBRICANT 250 G TUBE
1 x 13228.070X - LORO-X SLIDING FLANGE FOR DOUBLE PIPE SCUPPER DRAINS WITH FIXED + LOOSE FLANGE CONSTRUCTION DN 70
2 x 09604.200X -
4 x 00806.070X - LORO-X ANCHOR CLIP DN 70
1 x 00806.100X - LORO-X ANCHOR CLIP DN 100
